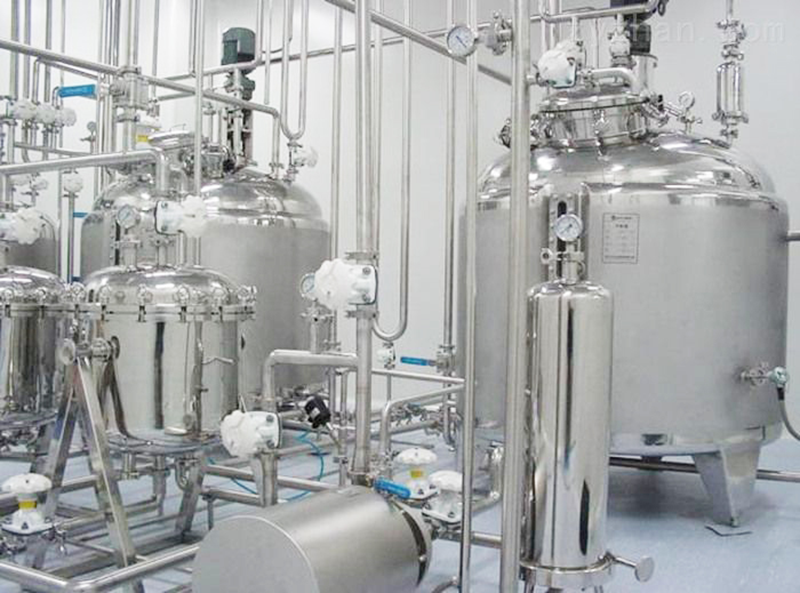

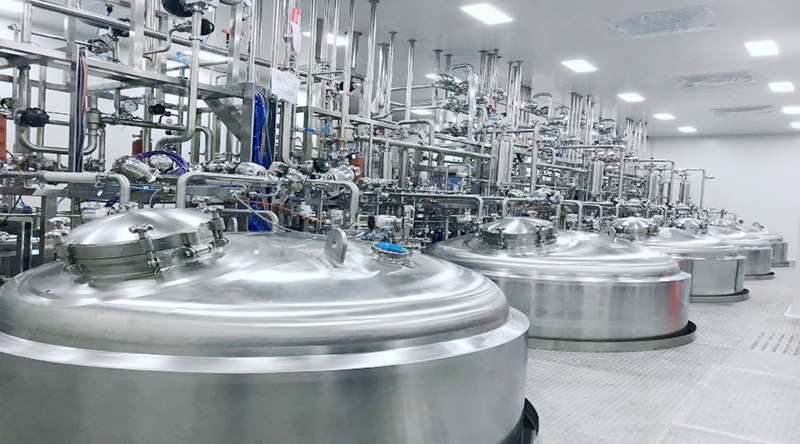

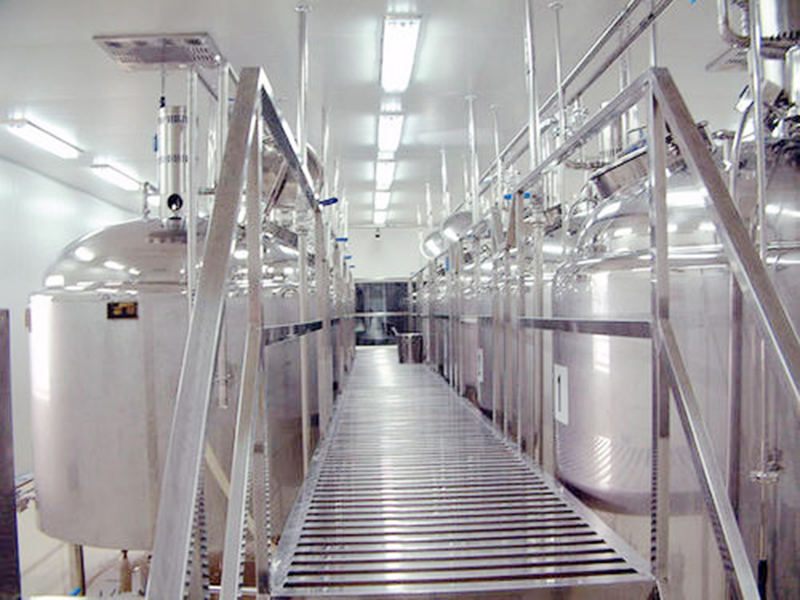

配液系统就是把原料药加入注射用水等溶剂中,经过搅拌、加热或冷藏、除菌过滤等,配制成符合
要求的注射剂所需浓度,是注射剂生产过程中最核心最复杂的环节;药液配液系统主要包括药液配
制、除菌过滤或超滤、动态缓存、药液输送和工艺控制等主要模块。
Compounding system means that put raw chemical into injection water, through mixing,
heating or cooling and filter into concentration which injection needed. This step is the
core and most complicated during injection producing. Chemical mixing system main
includes liquid configuration, sterilizing filter, ultra filter, dynamic buffering, chemical
transmission and processing control.
配液系统模块化的优点是:
The advantages of modular with fluid system :
1、全三维模块化设计,立体布局,人性化操作空间,利于死角控制。
2、工厂模块化制作、组装及调试,质量得以最大化受控。
3、管路流程优化,安装紧凑,减少占地空间;
4、配液系统的安装不受洁净室施工进度影响,加快工程项目进度,全自动操作及批次控制,对质
量得以保证并实现可追溯控制;
5、施工质量更能得到保证,更利于验证顺利进行。
1.Full 3 d modular design ,three-dimensional layout ,humanized operation space
,control in a corner ;
2.Modular production factory、assembly and commissioning, to maximize the quality
under control;
3.Line process optimization, compact installation, reduce cover an area of space;
4.With the installation of the hydraulic system is not affected by clean room construction
progress, speed up the progress of the projects; Automatic operation and batch control,
to assure the quality and implement the traceability control;
5.The construction quality can be guaranteed, more benefit at validation run smoothly.
